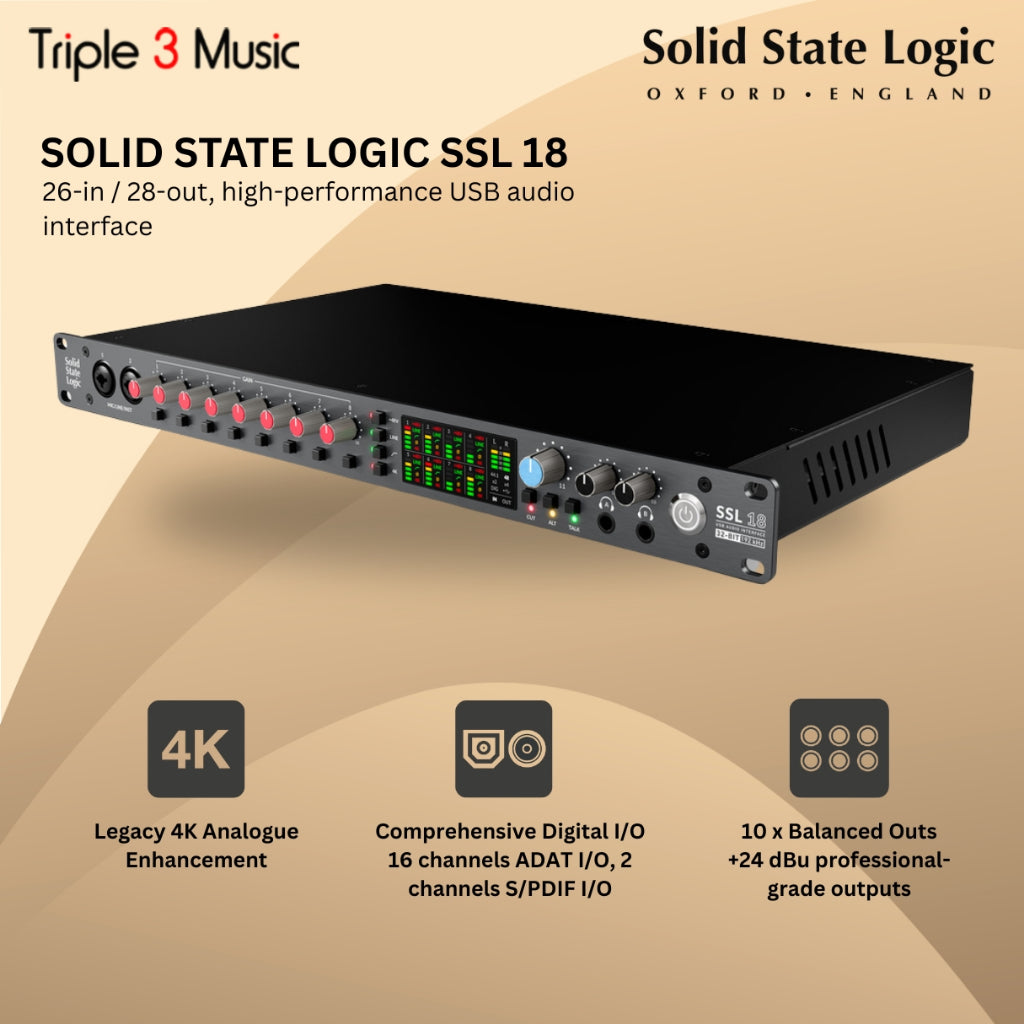

Solid State Logic SSL 18 USB 32 bit 192kHz Audio Interface Soundcard 8 In 10 Out

Solid State Logic SSL 18 Features:

• High-performance 26 x 28 USB-C audio interface for macOS and Windows

• Class-leading audio performance

• 8 microphone/line-level inputs

• Pristine microphone preamps with outstanding -130.5dBu EIN and 67dB of gain range for working with any mic

• 4K analog enhancement, polarity invert, highpass filters, and 48V phantom power per channel

• Configurable analog insert points for inputs 1 and 2, ideal for tracking with analog gear

• Inputs 1 and 2 switchable to instrument-level

• Line inputs bypass preamp stage

• 10 DC-coupled, balanced line-outputs

• Alternative speaker switching available for pairs 1-2 and 3-4

• +9dBu/+24dBu output level configuration options for pairs 1-2 and 3-4 to match your monitors

• DC-coupled outputs are perfect for sending CV to synthesizers and modular rigs

• 2 powerful independent headphone outputs with dedicated level controls

• 3 headphone mode options to suit different impedances: Standard, High Sensitivity, High Impedance

• Supports custom headphone mixes

• Dedicated Talkback input with Listen Mic Compressor (LMC)

• Talkback input can also be used in Line mode for processing of stems through the LMC

• 16 channels of ADAT I/O at 44.1/48kHz, 8 channels at 96kHz

• 2 channels of S/PDIF (coaxial or optical)

• MIDI I/O on 3.5mm TRS jacks

• Flexible clocking: internal (clock signal available on word clock output), or clock from incoming ADAT or S/PDIF

• Next-generation 32-bit/192kHz converters

• Best-in class 120dB dynamic range across all inputs and headphone outputs

• Best-in class 125dB output dynamic range on monitor and line outputs

• SSL 18 low-latency Mixer powered by SSL 360

• Comprehensive management of all inputs and outputs with the SSL 18 low-latency Mixer

• Create and manage the control room monitor mix

• Create 4 custom monitor mixes with ease: HP A (stereo), HP B (stereo), Line 3-4 (stereo or dual mono)

• Flexible Mirror Routing system routs any input or aux master directly to an output

• Customize the front-panel monitoring section buttons to accommodate your workflow

• Save/load SSL 18 Mixer profiles for various workflows to create tracking and mixing templates and more

• Stereo Loopback with selectable loopback source

• SSL Production Pack (a $1,100+ value) included with registration

Tech Specs

Computer Connectivity: USB 2.0

Form Factor: Rackmount

Simultaneous I/O: 26 x 28

Number of Preamps: 8 x mic/instrument

Phantom Power: Yes

A/D Resolution: 32-bit/192kHz

Analog Inputs: 9 x XLR-1/4" combo

Analog Outputs: 10 x 1/4"

Digital Inputs: 1 x Coax (S/PDIF), 2 x Optical (ADAT, S/PDIF)

Digital Outputs: 1 x Coax (S/PDIF), 2 x Optical (ADAT, S/PDIF)

Inserts: 2 x 1/4" TRS

Headphones: 2 x 1/4"

MIDI I/O: In/Out

USB: 1 x USB-C

Clock I/O: 1 x Word Clock

OS Requirements - Mac: macOS 13 or later

OS Requirements - PC: Windows 10 or later

Power Supply: Standard IEC AC Cable

Manufacturer Part Number: 729748X2
