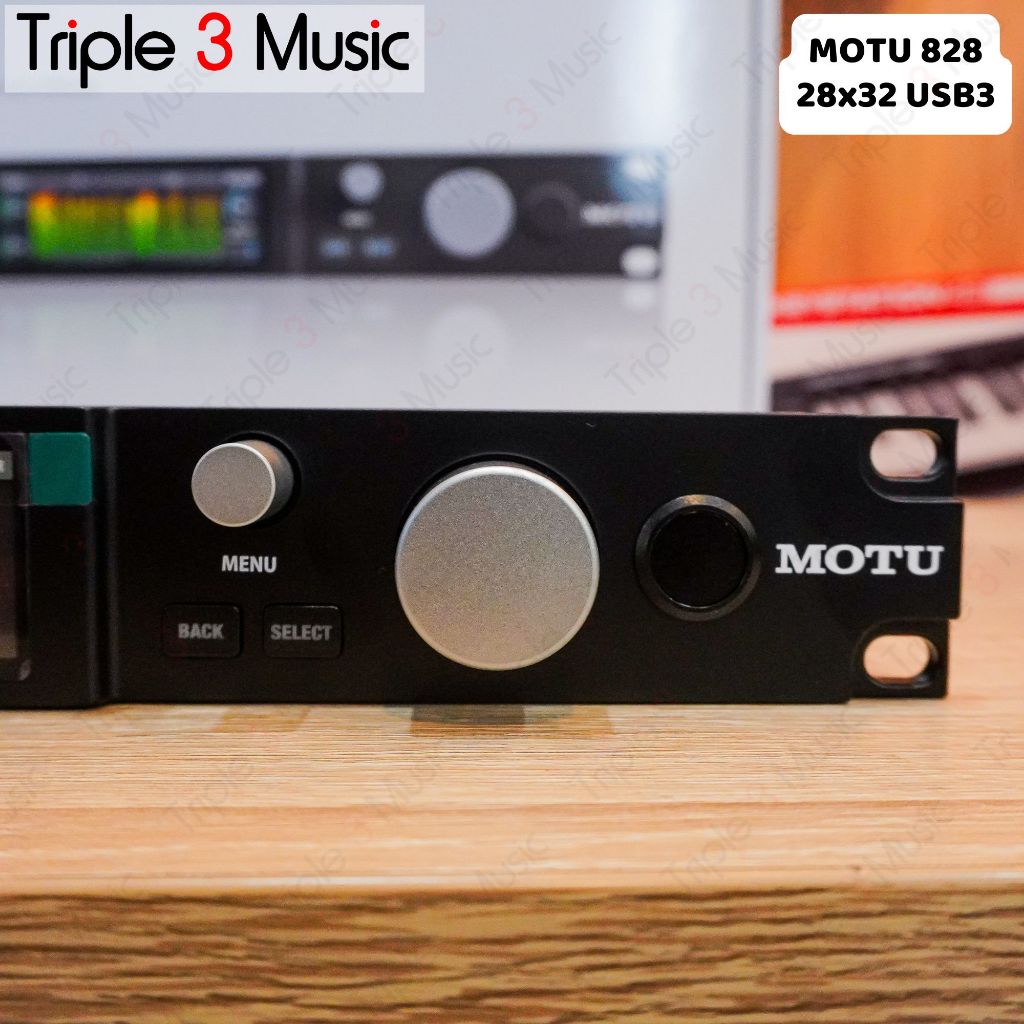

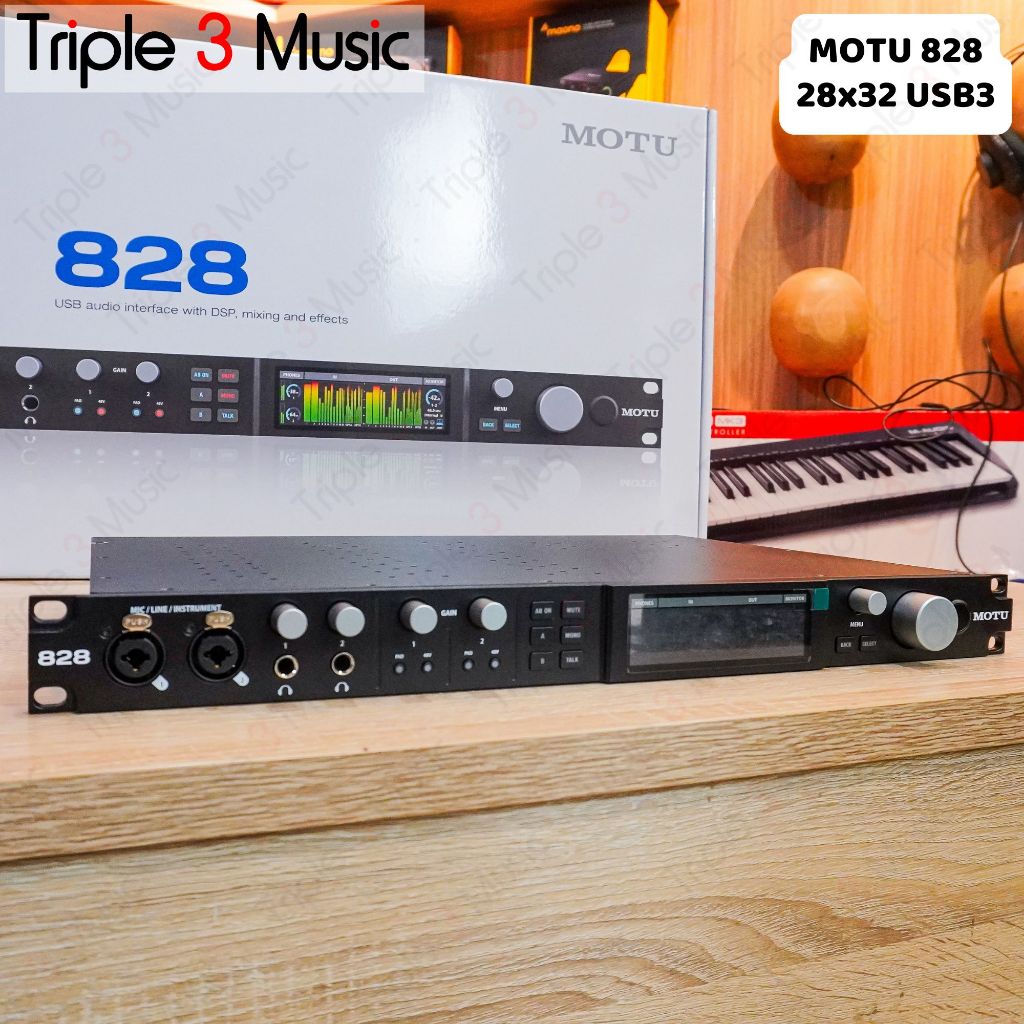

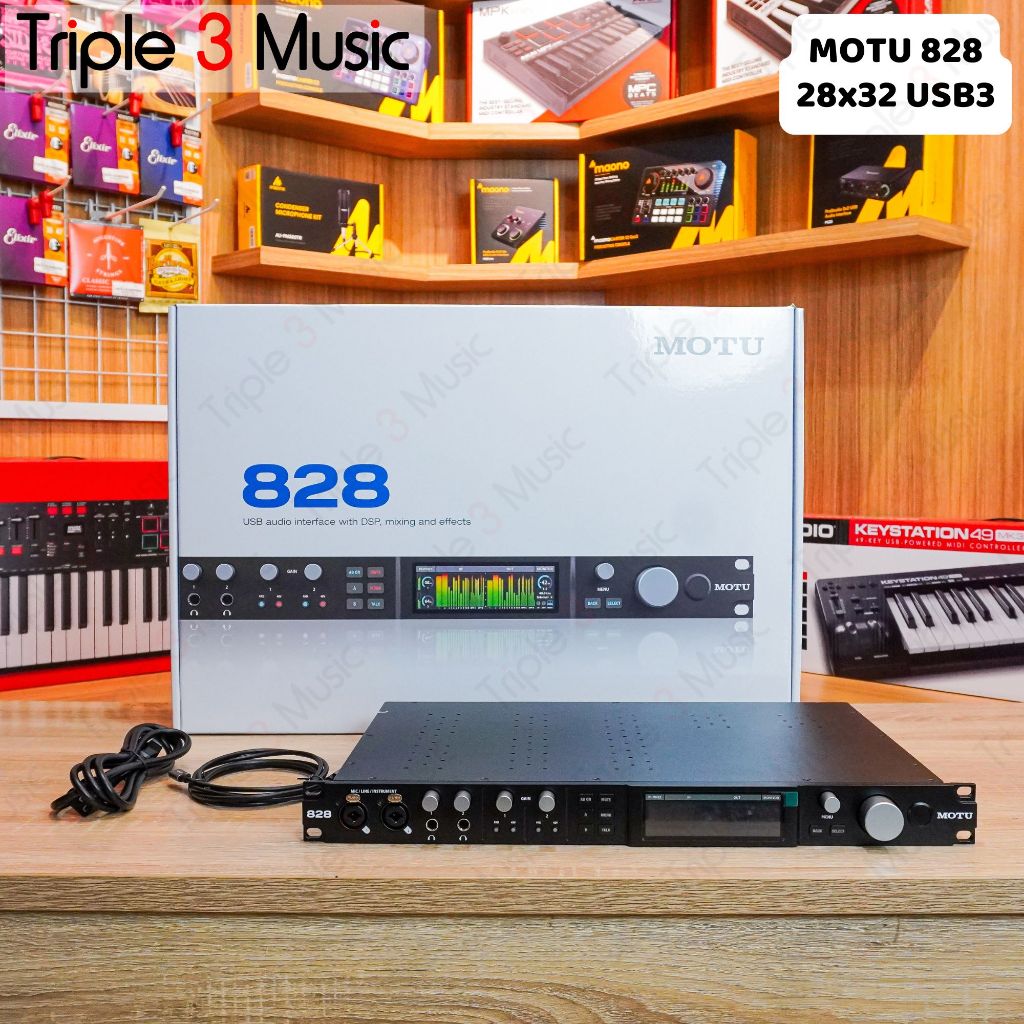

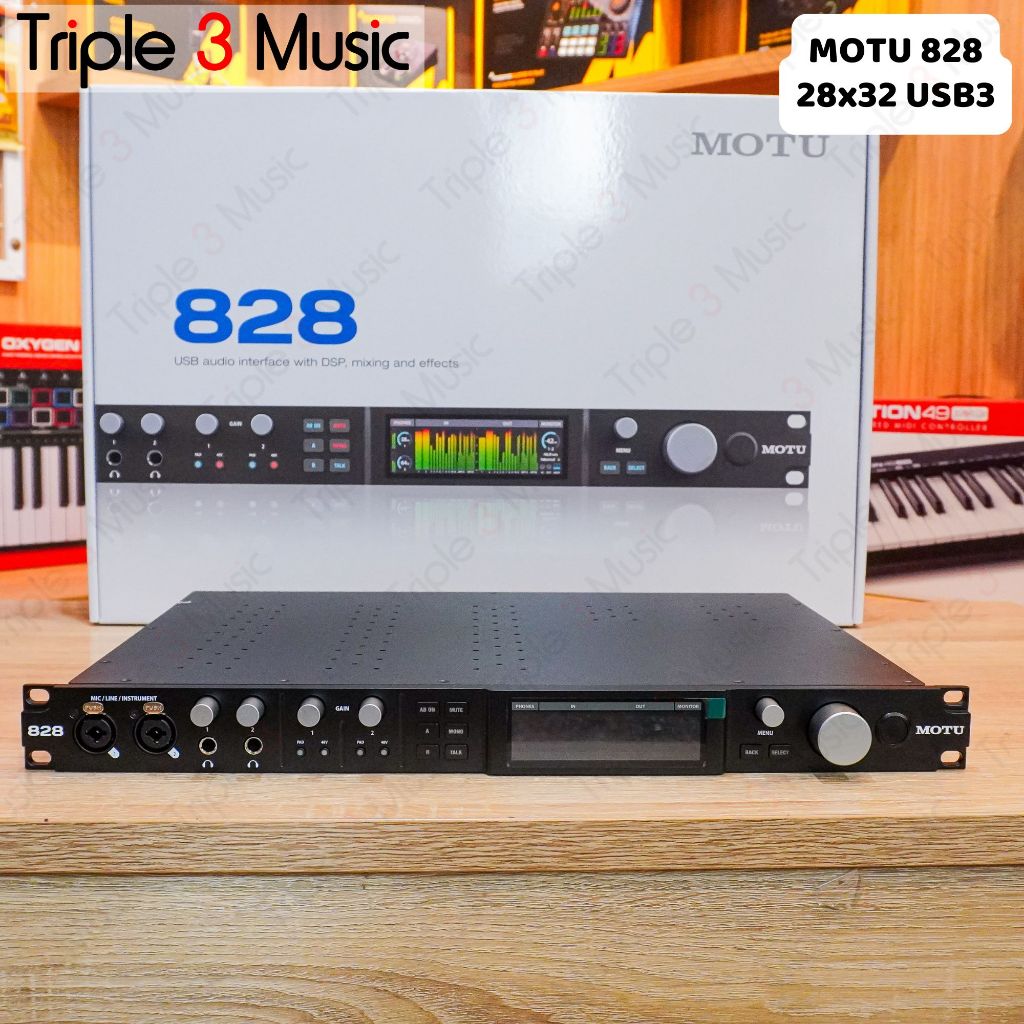

MOTU 828 28x32 USB 3.0 Audio Interface Soundcard

MOTU 828 Features:

•     5th-generation of MOTU's ubiquitous 1-rack-unit, 2-preamp audio interface

•     Lightning-fast USB3 connectivity operates at 5 Gbps

•     28-in/32-out interface with 2 banks of optical I/O, plus word clock and MIDI

•     Class-compliant firmware works with a gamut of Mac, PC, and iOS devices

•     High-performance drivers provide 2–3ms of roundtrip latency

•     ESS Sabre32-fueled sound with 24-bit/192kHz conversion

•     Overhauled mic pres with 74dB of available gain

•     Hardware inserts make integrating outboard hardware easy

•     hi-Z guitar inputs facilitate effortless re-amping

•     Loopback functionality for livestreaming and podcasting

•     Precision boost for all analog inputs and trim for all analog outputs in 1dB increments

•     DC-coupled TRS outputs allow you to manipulate and sequence voltage-controlled synthesizers directly from your DAW

•     2 dedicated headphone outputs with independent volume control and customizable cue mixes

•     Built-in 24-channel digital mixer with 8 stereo buses and onboard DSP effects

•     Advanced control room features with talkback and A/B monitor select

•     Optical expansion mode makes adding extra I/O to your rig a breeze

•     Footswitch input supplies hands-free punch-in recording and more

•     3.9-inch front-panel TFT display with customizable metering

•     Multichannel monitor control for surround workflows

•     Wi-Fi control from your Mac, PC, or iOS device

•     Network discovery and management features

•     Includes MOTU Performer Lite and Ableton Live Lite applications, plus over 6GB of loops, samples, and 1-shots

Tech Specs

•     Computer Connectivity:USB 3.2 Gen 1

•     Form Factor:Rackmount

•     Simultaneous I/O:28 x 32

•     Number of Preamps:2

•     Phantom Power:Per channel

•     A/D Resolution:Up to 24-bit/192kHz

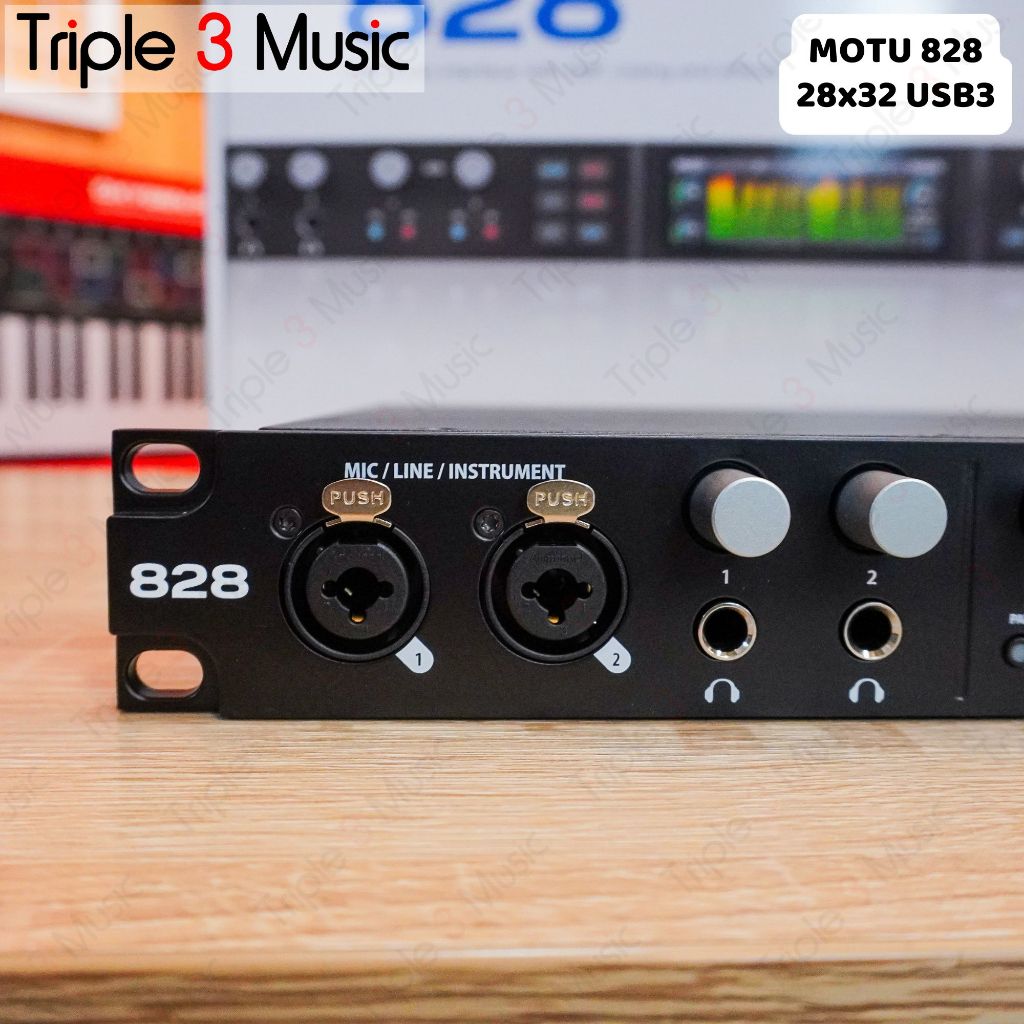

•     Analog Inputs:2 x XLR-1/4" combo (mic/line/Hi-Z), 8 x 1/4" TRS

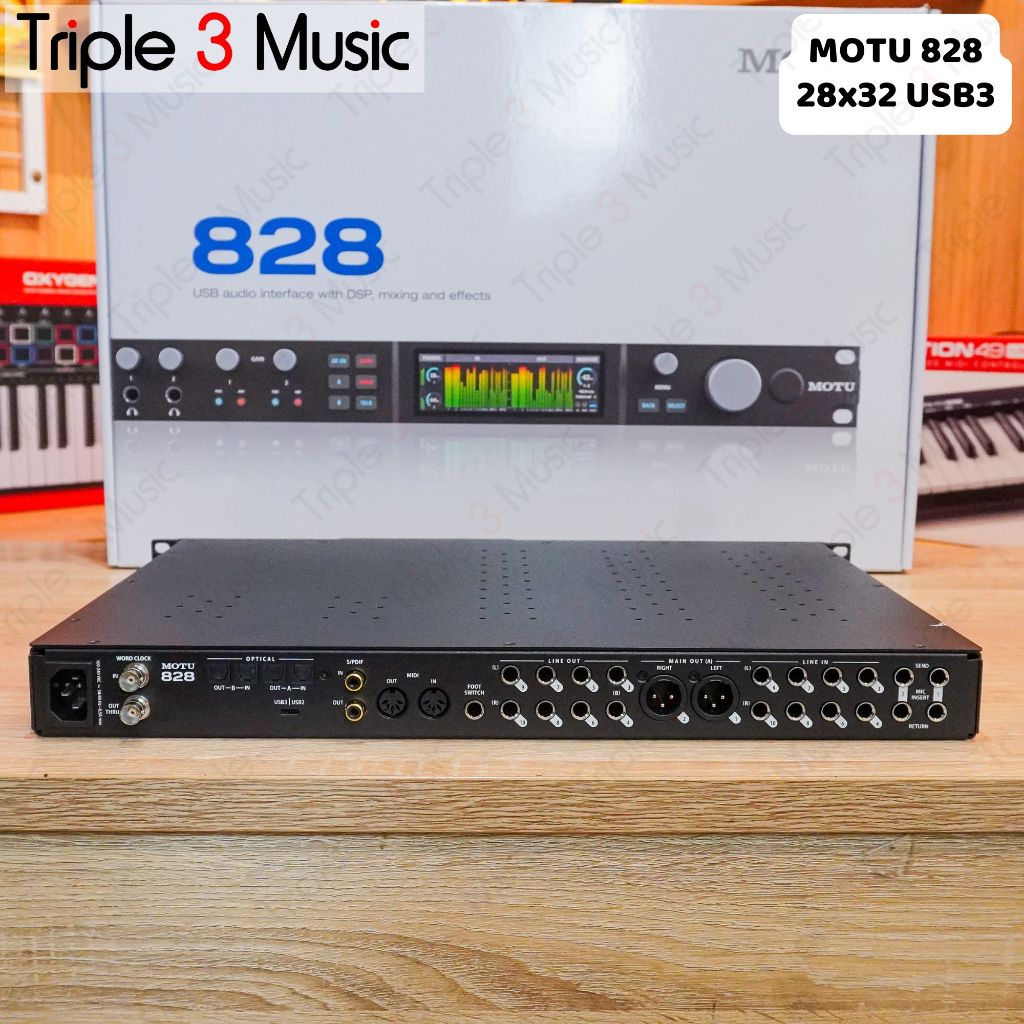

•     Analog Outputs:8 x 1/4" TRS, 2 x XLR

•     Digital Inputs:1 x Coax (S/PDIF), 1 x Optical A (ADAT), 1 x Optical B (ADAT/stereo Toslink)

•     Digital Outputs:1 x Coax (S/PDIF), 1 x Optical A (ADAT), 1 x Optical B (ADAT/stereo Toslink)

•     Inserts:2 x 1/4" TRS (mic send), 2 x 1/4" TRS (mic return)

•     Headphones:2 x 1/4" TRS (ESS-driven)

•     MIDI I/O:In, Out/Thru

•     USB:1 x USB-C 3.2 Gen 1

•     Clock I/O:1 x BNC (In, Out/Thru)

•     Other I/O:1 x 1/4" (footswitch)

•     Features:3.9" LCD Display

•     Software:MOTU CueMix 5 app, MOTU Performer Lite, Ableton Live Lite

•     OS Requirements - Mac:macOS 10.15 or later

•     OS Requirements - PC:Windows 10 or later

•     Rack Spaces:1U

•     Power Supply:Standard IEC AC cable

•     Height:1.75"

•     Width:19"

•     Depth:12.25"

•     Weight:11 lbs.

•     Manufacturer Part Number:9390
