Boya BY XM6 S2 S1 MIC Wireless CLIP ON ORIGINAL

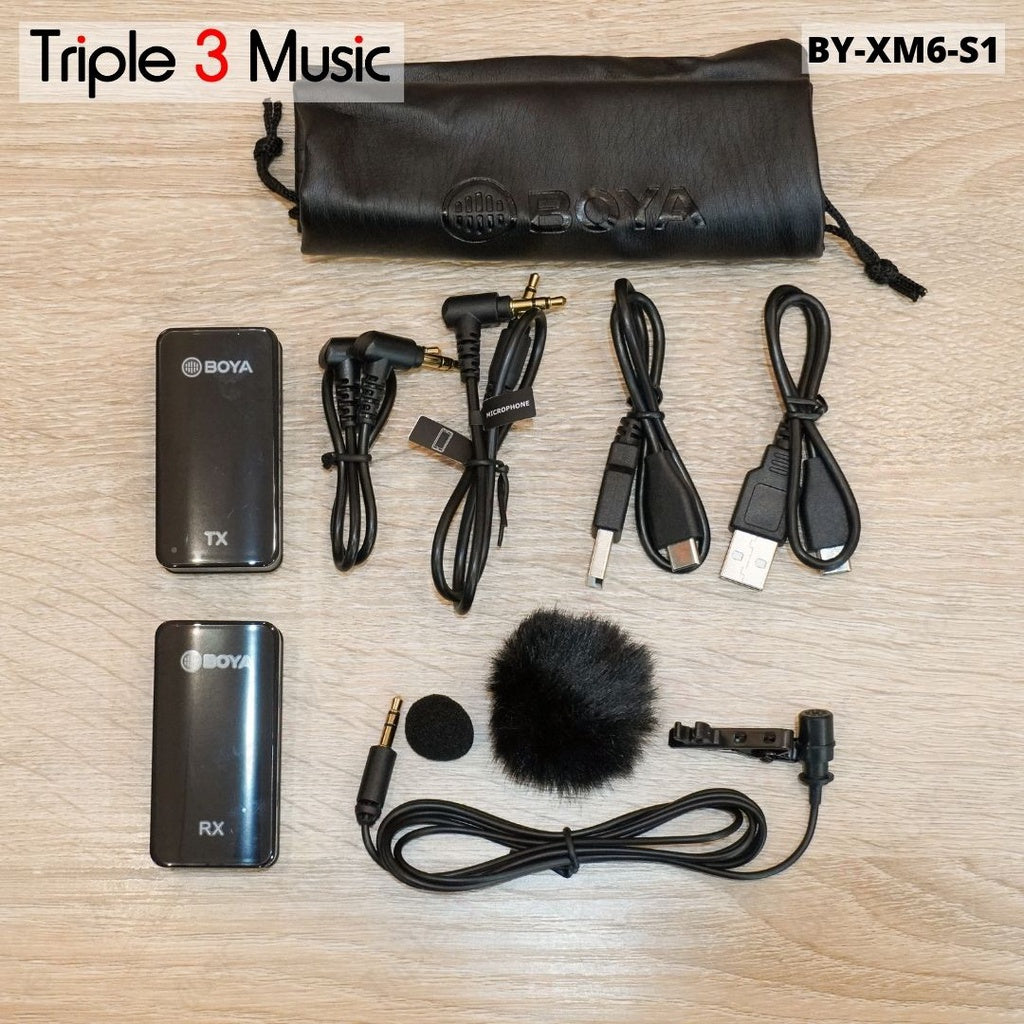

Apa saja yang didapat variant s1

- 1 BY-XM6 RX

- 1 BY-XM6 TX

- 1 Lavalier mic

- 2 USB C

- 1 kabel trs to trs

- 1 kabel trs to trrs

- 1 Windshield

- 1 carry pouch

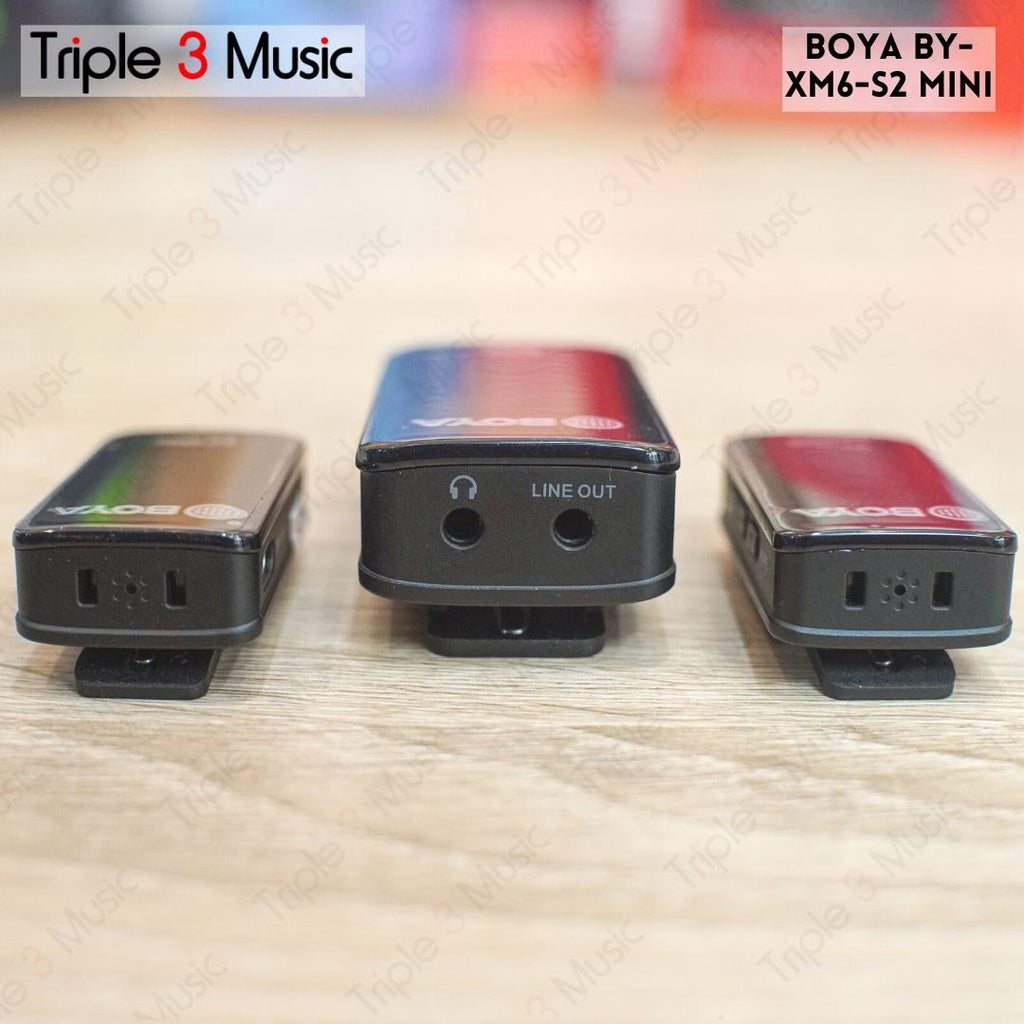

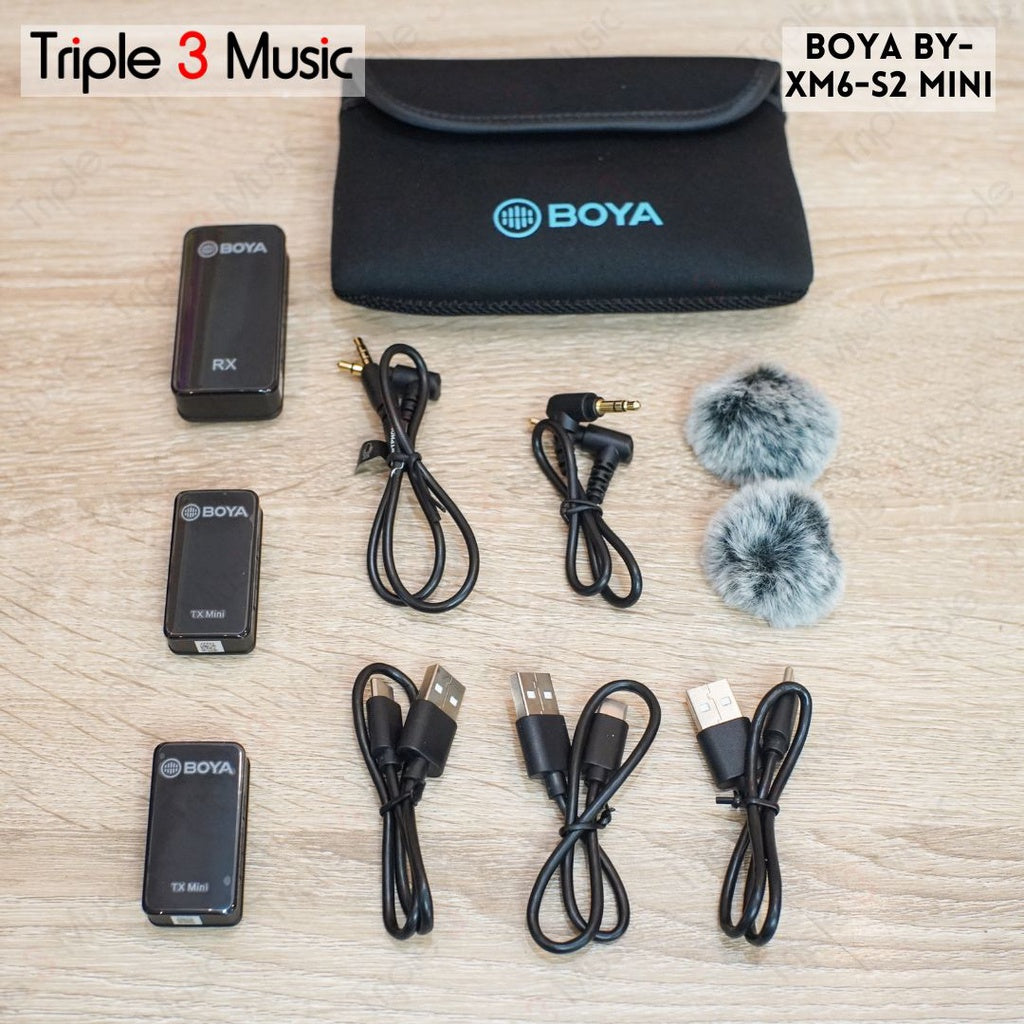

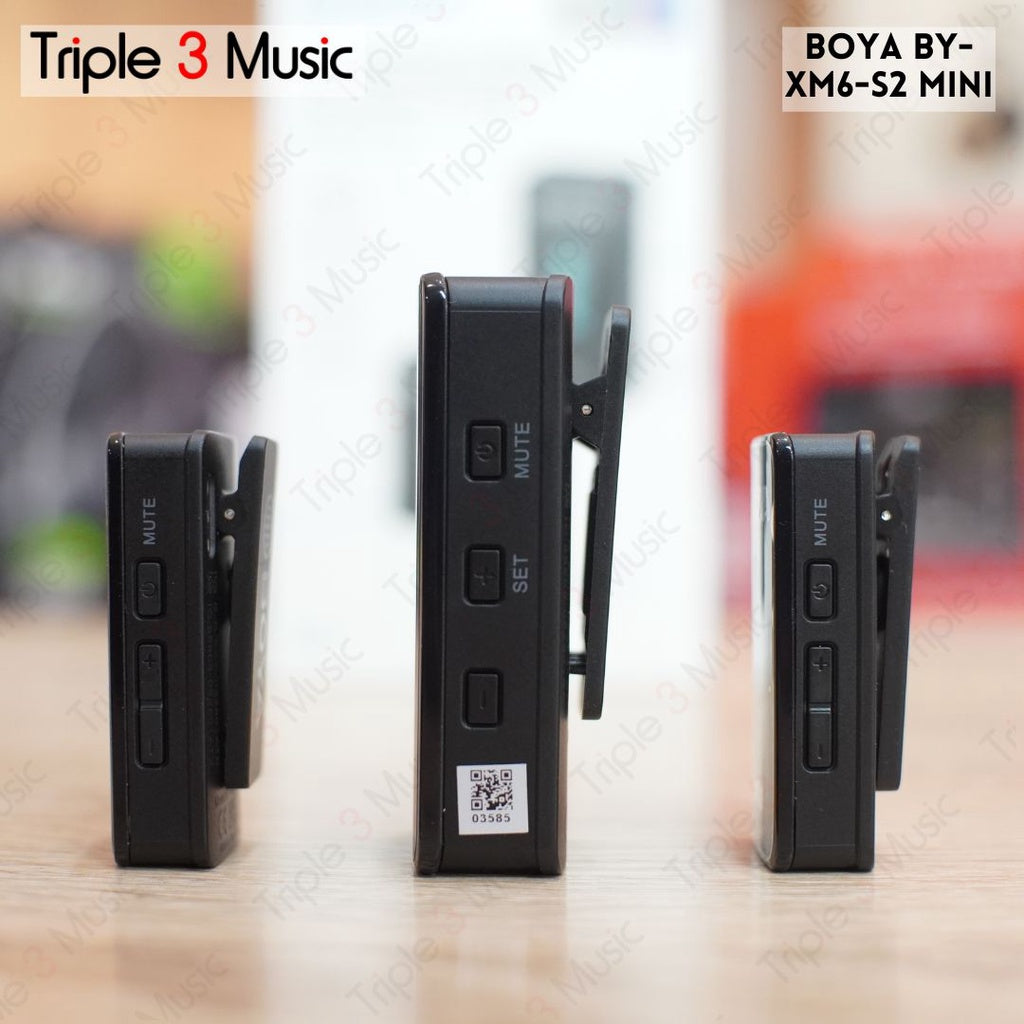

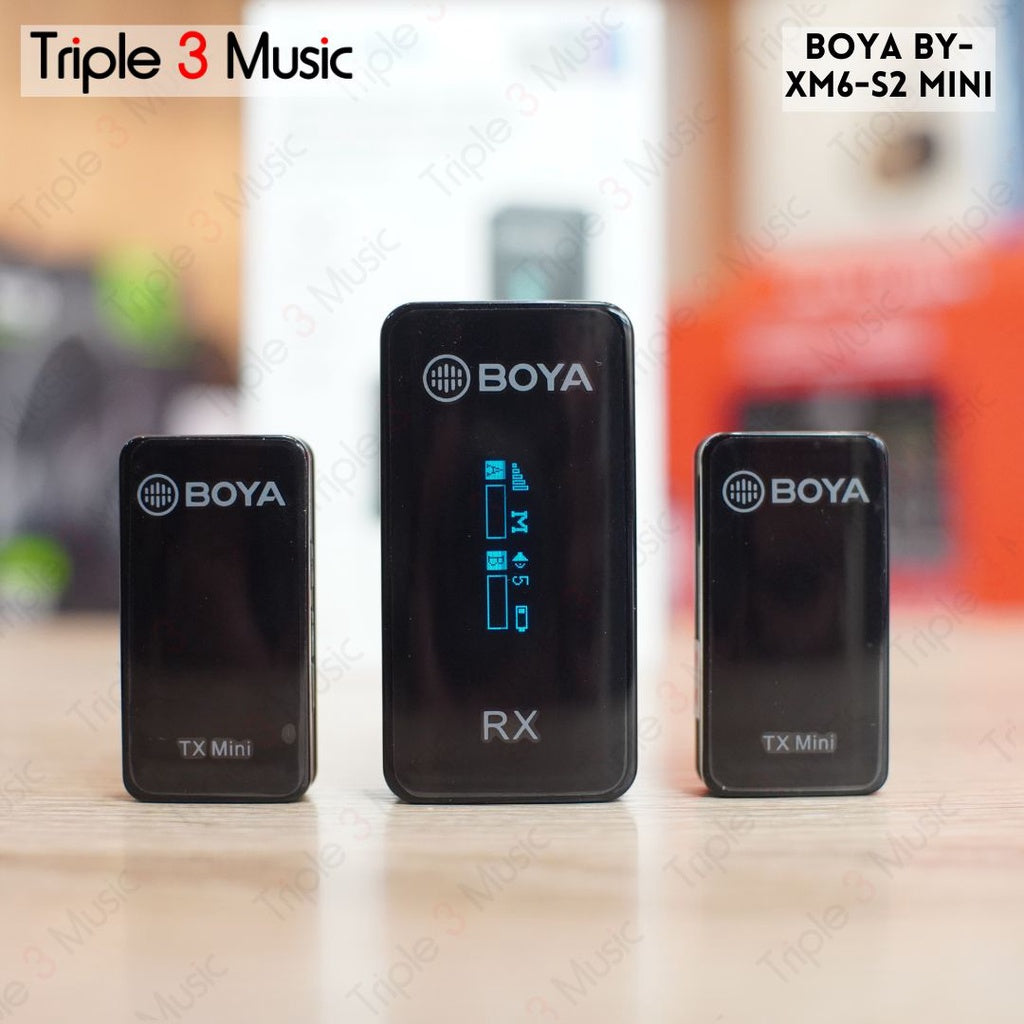

Apa saja yang didapat variant s2 Mini

- Boya s2 RX 1 unit

- boya s2 mini tx 2 Unit

- windshield 2 Unit

- Pouch 1 Unit

- 3.5mm trrs to trs 2 Unit

- usb c to usb a 3 Unit

BY-XM6 TX Mini Transmitter

Transmission Type 2.4GHz lSM Frequency

Modulation GFSK

Operating Range Up to 328ft (100m) (without obstacle)

RF Output Power <10mw

Polar Pattern Omnidirectional

Frequency Response 35Hz-18KHz

Maximum SPL 120dB SPL

Sensitivity -39dB

SNR >77 dB

Power Requirements Built-in Li-ion Battery or USB-C DC 5v or Charging Contact

Built-in Battery Life Approx.4.5 hours

Antenna PIFA Antenna

Audio lnputs Built-in Microphone

Weight Approx.14.5g(0.5oz)

Dimensions 46x23.92x15mm

Operating Temperature -10°C to 50°C

Storage Temperature -20°C to +55℃

BY-XM6 RX Receiver

Transmission Type 2.4GHz Digital Frequency

Modulation GFSK

Operating Range Up to 328ft (100m)(without obstacle)

Audio Output Connector 3.5mm Headphone Jack

3.5mm TRS Output Jack

Audio Output Level -60 dBV to -20dBV

Power Requirements Built-in Li-ion Battery or USB-C DC 5v or Charging Contact

Built-in Battery Life Approx.7 hours

Antenna PIFA Antenna

Weight Approx.32g(1.13oz)

Dimensions 62.1×31.6×16.5mm

Operating Temperature -10℃ to 50°C

Storage Temperature -20℃ to +55°C
